ISO 2001:2015 / WAWF COMPLIANT Ph: (606) 376-5021
  • OVC-Engineered Solutions, LLC

Rapid Response Systems

Rapid Response Shower System

Designed for Rapid Deployment addressing Fast or Emergency Response and Disaster Relief Situations – Anywhere in the World

Outdoor Venture's Rapid Response Systems provide rapidly deployable washing hygiene support for situations needing reliable and easy operation for quick reaction, emergency and disaster relief missions throughout the world. Modular configuration permits usage in a wide variety of support configurations.

  • 3 for 1 Expandable privacy and washing area
  • 2 person, 45 minute set up
  • Minimal Operator Attention
  • -40°F to +120°F Operating Range
  • Separate Male / Female Sides
  • Environmentally Controlled
  • Supports up to 75 Personnel
  • Multiple Transport Options
  • Total Integrated Weight < 7,000 LBS
  • Source and Waste Water Bladders
  • Off-Board Water Supply and Waste Pump for Ease of Maintenance
  • One Year Warranty on Workmanship

Shower Features

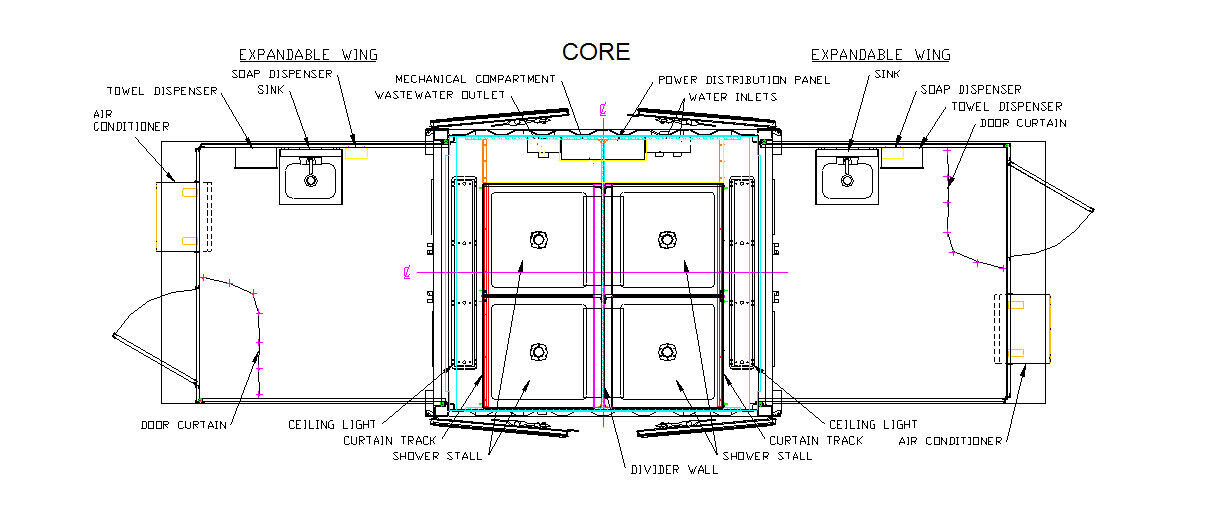

  • Housed in Expandable Package unfolding into three times the space allowing for privacy, washing and shaving
  • Four Shower Stalls
  • Water Consumption
    • 2 GPM Shower Heads
    • 0.5 GPM Sinks (Optional Momentary Faucet)
  • Sinks
    • Two Internal
    • Two External Shave Stands (mounted to wing walls)
  • Off-Board 2.0 hp. Grinder Discharge Pump
  • Off-Board 3 hp. Centrifugal Supply Pump
  • Separate Hot and Cold Water Supply Connections
  • Water Storage
    • 3,000 Source Water Bag
    • 3,000 Waste Water Bag
  • Two 7,500 Cooling Btu/hr. Environmental units
  • Two 1500 Watt Thermostatic Controlled Space Heaters
  • One 60 AMP Electric Service (Mil-Std. Electrical Connectors)
